Thermodynamics • Cladding Engineering • CT HIC #0667822
Why Vinyl Siding Panels Separate on One Side of Waterbury Homes: Solar Thermodynamics, Fastener Pinning, and Negative Wind Loads

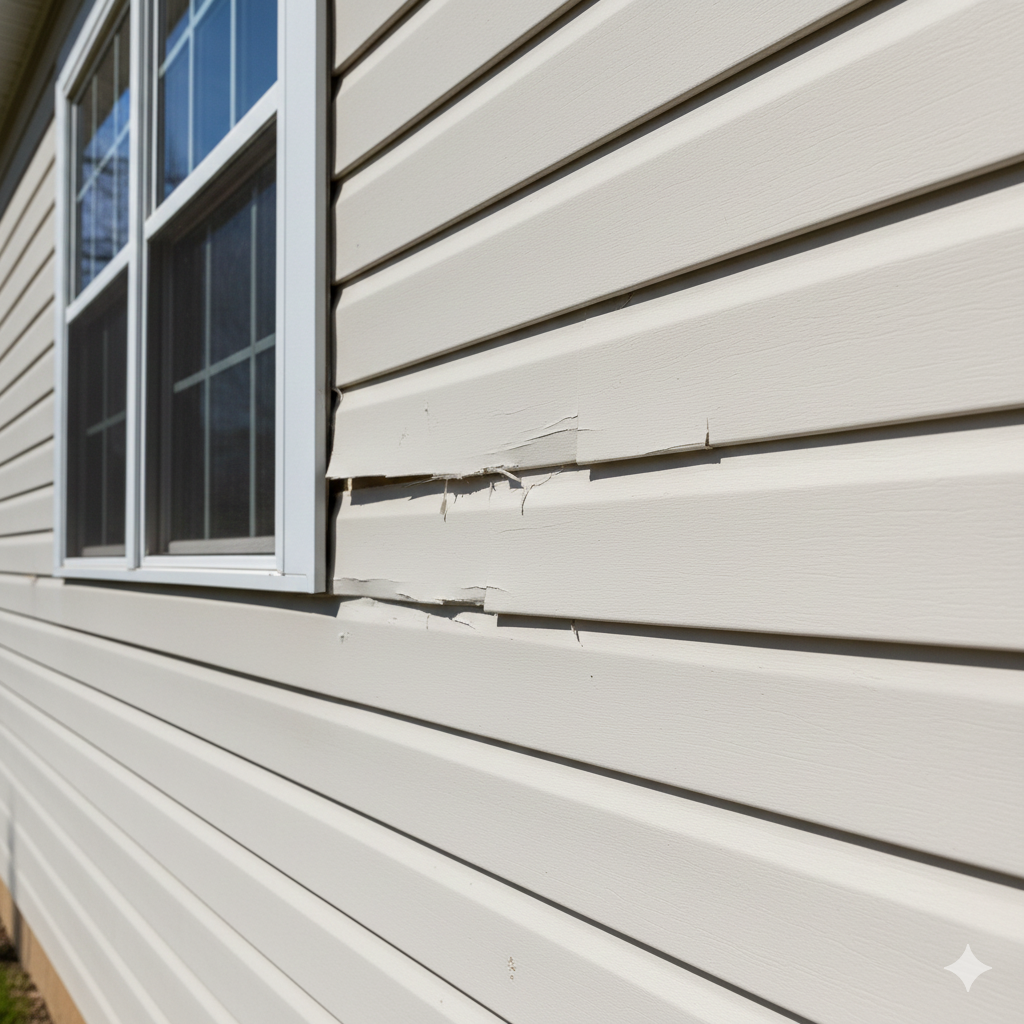

You walk around your house and observe a puzzling exterior defect: along three sides of your home, the vinyl siding is smooth, flat, and perfectly locked together. But on one single elevation—almost invariably the south-facing or west-facing wall—the siding panels keep separating, popping out of their locking channels, bowing into unsightly waves, or sliding downward. Even after you climb a ladder and snap the panels back together with a click, the very next sunny afternoon or windstorm pops them wide open again. For homeowners across Waterbury, Bunker Hill, Town Plot, and Overlook, isolated siding separation is an aggravating, frequent mystery. In building thermodynamics and exterior cladding mechanics, vinyl siding is an active, dynamic material that must move continuously. Discover why siding panels separate on one side of your home and how professional envelope calibration eliminates the problem permanently.
Direct Answer: Why Do Vinyl Panels Separate on Only One Elevation?
Vinyl siding panels separate on one side of Waterbury homes because that specific elevation experiences intense solar thermal expansion combined with improper installation nailing (“fastener pinning”). On south- and west-facing walls, afternoon sun drives surface temperatures past 160 degrees Fahrenheit, causing 12-foot vinyl panels to expand by nearly half an inch. If the installer drove nails too tightly against the wall, nailed off-center in the slot, or failed to leave a 1/4-inch expansion clearance inside J-channels, the expanding panel is locked in place. The trapped thermal energy forces the panel to buckle outward, disengaging the bottom hook from the course below.
- The “Tight Nailing” Error: Driving fasteners hard against the vinyl prevents horizontal sliding, forcing panels to buckle outward under solar heat.
- Thermal Expansion Extremes: South and west walls endure 100-degree daily temperature swings, expanding and contracting twice as aggressively as shaded north walls.
- Insufficient Overlap: In winter, freezing temperatures shrink panels; if courses were overlapped less than the required 1-1/8 inches, seams pull apart completely.
- Negative Wind Vortexes: Turbulent wind eddies around building corners create outward suction that pulls distorted panels from their locks.
- Professional Solution: Re-hanging panels with 1/32-inch fastener float, adjusting expansion gaps, and installing heavy-gauge interlocking siding ((860) 897-5100).
1. The Material Science of Polyvinyl Chloride: Thermal Coefficient Physics
To understand why vinyl siding fails on a specific elevation, one must understand the unique physical characteristics of polyvinyl chloride (PVC). PVC has a thermal expansion coefficient of approximately 3.4 x 10^-5 inches per inch per degree Fahrenheit—one of the highest rates of thermal movement among exterior cladding materials. In simple terms, a standard 12-foot, 6-inch vinyl panel can expand and contract by up to five-eighths of an inch across the temperature extremes of a single Connecticut calendar year.
Because of this dramatic movement, vinyl siding is engineered to “hang” loosely from wall framing rather than being rigidly attached. The nail hem along the top of each panel features elongated horizontal slots. A code-compliant installation requires driving corrosion-resistant nails dead-center in these slots, leaving a gap of approximately one thirty-second of an inch—the thickness of a dime—between the nail head and the vinyl. This allows the panel to glide smoothly back and forth horizontally as ambient temperatures rise and fall. When this thermal freedom is compromised, mechanical failure is inevitable.
2. The “Hard-Nailing” Blunder: Trapping Kinetic Expansion Energy
The number one cause of isolated siding panel separation is installer error: driving nails too tightly against the nailing hem. When uncertified contractors or handymen install vinyl siding, they often treat it like traditional wood clapboard, hammering nails flush against the substrate. This practice is known in the exterior trades as “fastener pinning.”
On shaded north-facing walls, a pinned panel may never expand enough to cause an issue. But on the south or west side of the house, where summer sun bakes the wall, the vinyl attempts to expand. Because the nail heads clamp the panel tightly against the sheathing, the panel cannot slide horizontally. The expanding plastic must find an outlet for its energy. It bows violently outward in the middle, creating prominent ripples or “oil-canning.” This outward buckling exerts massive torsional force on the bottom interlocking hook. Once the hook is pulled outward past its mechanical engagement threshold, the panel snaps free from the course below, drooping down and leaving a gaping horizontal void on your exterior wall.
3. The J-Channel Bottleneck: Insufficient End-Clearance Traps
Where horizontal siding courses terminate into vertical trim components—such as outside corner posts, inside corners, and window or door J-channels—installers must leave an intentional expansion gap. The Vinyl Siding Institute (VSI) manual and the Connecticut State Building Code mandate a minimum clearance of one-quarter of an inch inside receiving channels during warm weather installations, and three-eighths of an inch when installing in cold temperatures.
On older Waterbury homes where replacement siding was installed without strict adherence to VSI standards, contractors frequently cut panels too tight to the inside of the J-channel to create a “snug” visual look. When the hot afternoon sun hits that elevation, the panel expands horizontally until its ends strike the back of the J-channels. With nowhere left to expand sideways, the entire 12-foot length of vinyl buckles outward with immense hydraulic force. The interlocking hook pops open along the center of the wall. Re-locking the panel is completely futile; until the ends are trimmed back to restore the vital 1/4-inch thermal expansion space, the panel will pop open every single time the sun shines.
4. Winter Shrinkage: Why Seams Pull Apart During Arctic Cold Snaps
While summer solar radiation causes panels to buckle and pop out of horizontal locks, sub-freezing Connecticut winter temperatures trigger an entirely opposite failure: seam separation at horizontal overlaps.
Where two siding panels meet on a long wall run, they must overlap by at least one inch to one and one-eighth inches to ensure an unbroken weather-resistive surface. If the siding was installed during a hot July day when the panels were already fully expanded, the installer may have overlapped the panels by only three-quarters of an inch. When January arrives and temperatures plunge to zero degrees Fahrenheit, both panels contract toward their center nail anchors. The overlap shrinks rapidly until the ends pull completely out of each other, leaving a visible one-inch gap where raw weather barrier and sheathing are exposed directly to driving snow. Furthermore, the loose, un-overlapped end flutters in the winter wind, eventually cracking the brittle cold PVC vinyl.
5. Aerodynamic Suction: How Negative Wind Vortexes Pry Panels Free
Another major factor explaining why siding separation occurs on one specific elevation is local wind aerodynamics. When wind blows against a building, it exerts positive pressure on the windward wall. However, as the airflow passes around the corners and over the roof, it creates powerful negative aerodynamic suction zones—known as leeward vortexes.
In Waterbury, prevailing winter winds from the northwest generate intense localized suction zones along south and southeast elevations. If panels on these elevations are already under mechanical stress from tight nailing or thermal expansion, the outward suction force easily pulls the disengaged locking lip away from the wall. Once one panel is sucked free, turbulent air rushes behind the cladding, peeling adjacent courses away in an accelerating chain reaction.
6. Concealed Substrate Irregularities: Warped Studs in Historic Framing
Many charming historic residences in Waterbury—particularly in neighborhoods like Atwood Avenue, Overlook, and Hillside—feature original full-dimension framing lumber or rough-sawn board sheathing that has settled unevenly over the past century.
If a wall has a bowed stud that protrudes outward by three-eighths of an inch, vinyl siding installed over that area is forced over a high spot. The panel must bend across the bulge, which pre-stresses the bottom locking hook. The moment solar heat or wind suction acts on that panel, the pre-stressed lock releases immediately. In contrast, flat sections of the house hold securely. Fixing this issue requires removing the siding, shimming or planing the wall studs to create a true, flat plane, and reinstalling the cladding.
7. Professional Cladding Calibration: Master Workmanship by LCM Services LLC
Resolving recurring siding panel separation requires precision calibration by licensed siding craftsmen who understand the thermodynamic physics of exterior building envelopes. Slapping caulk into the seam or driving face nails into the vinyl only ruins the panels and voids manufacturer warranties.
At LCM Services LLC (CT HIC #0667822), our master technicians follow a meticulous diagnostic restoration protocol:
- Thermal Expansion Audit: Evaluating directional solar exposure, measuring panel clearances inside all receiving J-channels, and trimming bound ends to restore required 1/4-inch thermal float.
- Fastener Float Reset: Using specialized siding zip tools to disengage courses, removing improperly pinned nails, and re-hanging panels with 1-1/4 inch corrosion-resistant nails left 1/32-inch proud in the center of nail slots.
- Substrate Plane Shimming: Inspecting underlying sheathing for dry rot or structural framing bulges, installing level furring shims to eliminate high spots that pre-stress locking hems.
- Overlap Re-Engineering: Extending panel overlaps to 1-1/4 inches to prevent winter cold-temperature seam pull-apart.
- Heavy-Gauge Interlocking Upgrades: Upgrading vulnerable elevations to premium heavy-gauge vinyl (0.044 to 0.046 inch) featuring double-thick rollover nail hems engineered for 130 mph wind loads.
With professional envelope calibration from LCM Services LLC, your siding panels glide smoothly with the weather, staying locked, straight, and beautiful year-round.
8. The Magnifying Effect: Low-E Window Solar Convergence
In densely built Waterbury neighborhoods where residences sit close to neighboring properties, a modern architectural phenomenon frequently causes extreme localized siding separation: solar reflection from energy-efficient Low-E windows.
Double-pane Low-E windows feature slight barometric concave deflections in their glass panes. When afternoon sunlight strikes these slightly curved glass surfaces, the window acts like a parabolic mirror, focusing intense solar energy into a tight beam that sweeps across the adjacent neighbor’s siding. While direct sunlight rarely heats dark vinyl beyond 165 degrees Fahrenheit, concentrated solar reflections can produce surface temperatures exceeding 220 degrees—well past the heat distortion temperature (HDT) of standard PVC. The vinyl melts, twists, and permanently disengages from its locking channel. Diagnosing this issue requires exterior infrared mapping and installing high-heat composite claddings, heat-reflective screens, or specialized landscaping buffers.
Comparative Analysis: Amateur Siding Installation vs. LCM Services Master Craftsmanship
Discover the critical engineering differences that dictate whether vinyl siding separates or stays permanently locked on sunny elevations:
Frequently Asked Questions: Vinyl Siding Panel Separation in Connecticut
Why does my vinyl siding only pop open on the sunny side of my house?
The south and west elevations absorb extreme solar radiation, heating siding up to 160 degrees. If the panels were nailed too tightly or lack expansion gaps, the trapped heat forces them to bow outward and disengage their bottom locking hooks.
Can I just glue or face-nail a loose vinyl siding panel back into place?
No. Face-nailing or gluing vinyl siding prevents it from expanding and contracting. When the sun heats the panel, it will crack and buckle severely around the nail head, permanently ruining the panel and creating water leaks.
How loose should nails be when installing vinyl siding?
Nail heads must not be driven flush against the vinyl. Installers must leave approximately 1/32-inch of space (the thickness of a dime) between the nail head and the nail hem. The panel should be able to slide freely left and right by hand.
Why do vinyl siding seams pull apart in the winter?
Cold temperatures cause vinyl to contract and shrink. If the installer did not provide the required 1-1/8 inch overlap between panels during warm-weather installation, winter shrinkage pulls the ends completely out of each other.
Can separated vinyl siding cause hidden structural damage?
Yes. When panels separate, wind-driven rain and snow blow behind the siding. This moisture saturates underlying housewrap, rots OSB sheathing, rusts framing fasteners, and ruins wall insulation, leading to costly structural carpentry repairs.
How does LCM Services LLC fix separated vinyl siding permanently?
LCM Services LLC (CT HIC #0667822) unhooks panels with professional tools, checks underlying sheathing for hidden rot, trims J-channel clearances to allow free expansion, and re-nails panels with precise 1/32-inch float for lifelong performance.
